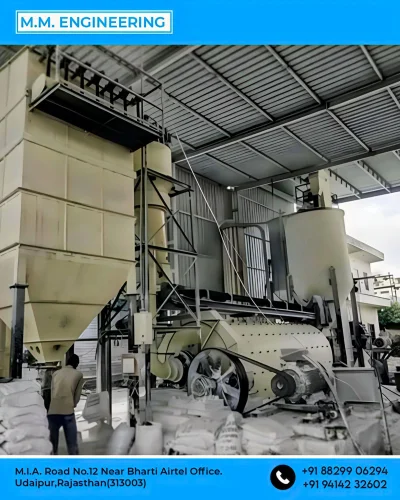

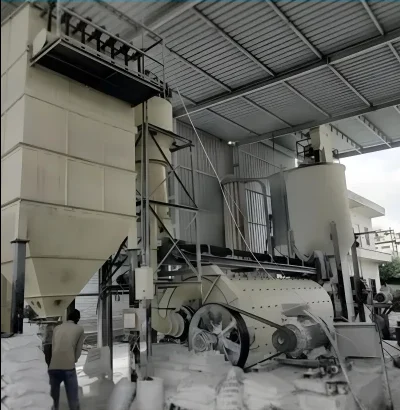

Micronizing Ball Mill

Machine Introduction: Our Ball Mill is Made with 50 year Grinding Proficiency, We Engross with Principal Brands of Udaipur to supply various ball mill parts, now we start Production work. 2M Ball mill is made with Two-piece shell to get healthier Firmness and strength, Additional Specification is Stated in Description

2M Make Micronizer Ball Mill

Including: – Feeder Screw; Frame; Cross Bridge Bearing Block; V- Belt Pully Single Stage RPM Reduction; Pinion; Girth Gear; Drive Part Frame.

Specifications:-

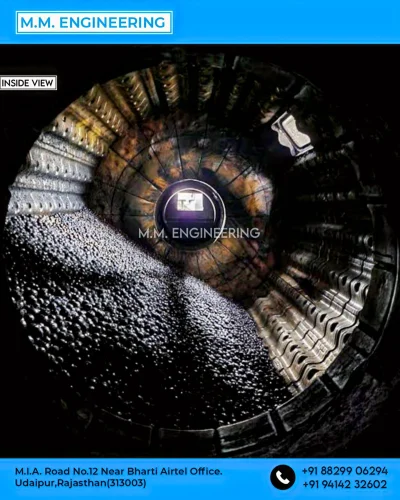

6’ (Día) x 14’ (Length); Shell Plate 16mm- Grade AH36; End Plate 40mm- Grade AH36; Binary Wave Manganese Steel Shell Liners; Spherical Roller Bearing 23072 CC/W33; Liner Fastener Grade-8.8;

Micronizer Unit

1. 2M Make Classifier – 2M-1C                1.Nos

2. 2M Make Pulse Jet Dust Collector       1.Nos

3. 2M Make Air Blower                            1.Nos

4. 2M Make Screw Conveyor                   1.Nos

5. 2M Make Belt Conveyor                      1.Nos

Extra Excluding:-

(1)2M Make Hammer Impact Crusher Outer Body in MS Material; Liner Manganese steel; Maximum Input Material Size 25mm; Capacity 1.5 Ton Per Hour.

(2) 2M Make Bucket Elevator

Without Gear Box and Motor

(3) 2M Make Hopper (Capacity 10 Ton)

Terms and Condition :-

1.Applicable GST 18% will be charged extra as actual.

2.Payment 60% Advance Along with Work-order, 30% after 30 days, and remaining 10% after successful Trial Run.

3.Delivery Within 30 Days, after receiving work order and advance.

4.Excluding: V-Belts, Air Compressor with Air Line, All Electrical Goods, Grinding Media, Civil Work, Loading, Packing, Forwarding, Transportation etc.

Why Choose Our Ball Mill Microniser?

Enhance your production process with the Ball Mill Microniser, where innovation meets reliability. Ideal for achieving the finest particle sizes, this equipment not only boosts product quality but also optimizes operational efficiency. Invest in precision and performance—transform your material processing today!

Contact Us:

For more information or to request a quote, please contact our sales team. Let us help you find the perfect solution for your micronization needs!

Additional Information:

• Delivery Time: 30 Days
